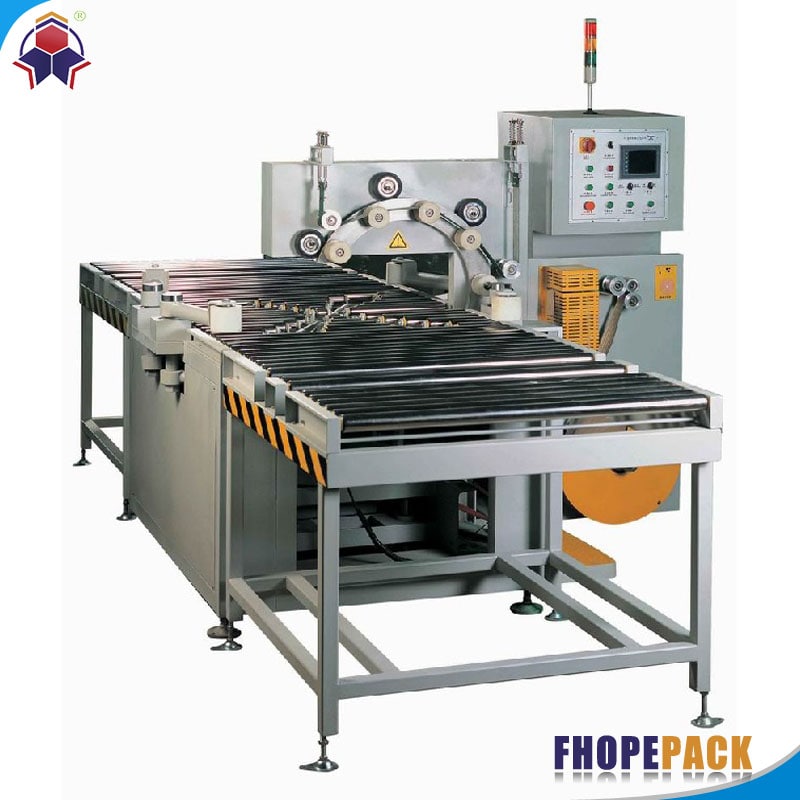

Bearing packing machine FPB-400

A bearing wrapping machine is a specialized piece of equipment that is designed to package large bearings and axletrees in a consistent and efficient manner. These machines typically feature a conveyor belt or other material handling system to feed the bearings and axletrees into the machine, as well as a packaging system to enclose the bearings and axletrees in a protective package.



Some key benefits of using a bearing wrapping machine include:



High efficiency: These machines are designed to work quickly and accurately, which can help to improve the overall packing capacity and reduce labor costs.



Tight packaging: The tight packaging provided by these machines can help to protect the bearings and axletrees during transportation and storage, and can also help to reduce the amount of packaging material needed.



High stability: The stability of the machine can help to improve the quality of the final packaged product, as it ensures that the packaging process is consistent and accurate.



Bearing wrapping machines are typically used in industries such as automotive, aerospace, and manufacturing, where the consistent and efficient packaging of large bearings is important.





Bearing wrapping machine is a highly automated and flexible piece of equipment that is well-suited for efficiently packaging large bearings.



Some key features of this machine include:



Infeed and outfeed conveyors: These conveyors allow the machine to quickly and easily handle large volumes of bearings, helping to improve efficiency and reduce the need for manual labor.



PLC with programmable memory: The inclusion of a PLC (programmable logic controller) with programmable memory allows the machine to store up to 6 different packaging programs, which can be selected via a keypad for easy operation.



Automatic centralized positioning: This feature helps to ensure that each bearing is accurately positioned for wrapping, improving the overall quality and consistency of the final packaged product.



Multiple packing material options: The ability to choose from different kinds of packing material allows the machine to be customized to suit the specific needs of the user.



Overall, this type of bearing wrapping machine is well-suited for use in industries such as automotive, aerospace, and manufacturing, where the efficient and consistent packaging of large bearings is important.



Bearing Packing Machine    FPB-400

Voltage (V/Hz)    AC 380/50( or your requirement)

Power (KW)    2.5

Bearing ID(mm)    300-800

Bearing OD(mm)    500-1200

Bearing width(mm)    100-400

Bearing Weight(Kg)    100-500

Packing material    Goffered paper/PE/Stretch film/knit belt/PVC

Ring speed(r/min)    30-70

Wrapping speed    30-50 sec/pce

Overlapping rate    20-90%
