Bearing packing machine

A bearing packing machine is a specialized piece of equipment used to package bearings and axletrees in a consistent and efficient manner. This type of machine typically consists of a conveyor belt or other material handling system to feed the bearings and axletrees into the machine, as well as a packaging system to enclose the bearings and axletrees in a protective package. Some bearing packing machines may also include additional features such as label printers or code scanners to help with tracking and identification of the packaged bearings. These machines are typically used in industries such as automotive, aerospace, and manufacturing, where the consistent and efficient packaging of bearings is important.

Bearing packing machine

Control:

The inclusion of a PLC (programmable logic controller) allows for automatic operation of the machine, which can help to reduce the need for manual intervention and increase the speed and consistency of the packing process.

The automatic positioning feature, which uses the ID (identification) of the bearing to accurately position it for wrapping, helps to ensure that each bearing is properly packaged and labeled.

Automatic motor conveyors can be used to automatically load and unload bearings into and out of the machine, further improving efficiency and reducing the need for manual labor.

The availability of both manual and automatic modes allows the machine to be operated in a way that is most suitable for the specific needs of the user.

Alarms that automatically trigger when trouble occurs can help to quickly identify and resolve any issues that may arise during the packing process.

The ability to softly stop and start the machine can help to reduce wear and tear on the machine and extend its lifespan.

The wrapping ring reset system helps to ensure that the wrapping process is consistent and accurate, leading to a better quality final product.

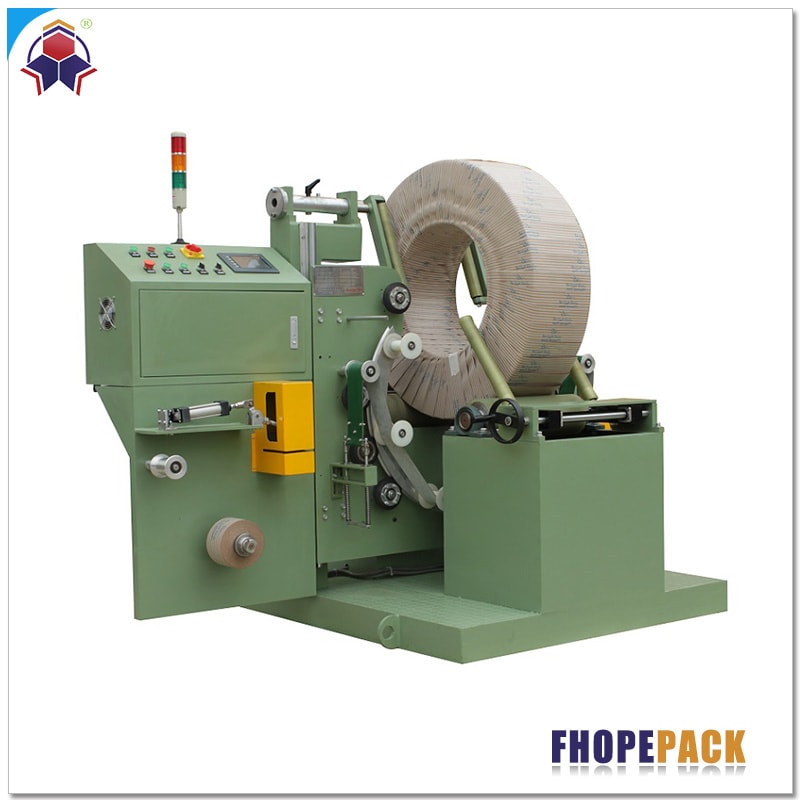

Bearing Packing Machine FPB-200

Voltage (V/Hz) AC 380/50( or your requirement)

Power (KW) 1.5

Bearing ID(mm) 300-600

Bearing OD(mm) 700-1000

Bearing width(mm) 20-200

Bearing Weight(Kg) 20-200

Packing material Goffered paper/PE/Stretch film/knit belt/PVC

Ring speed(r/min) 30-80
