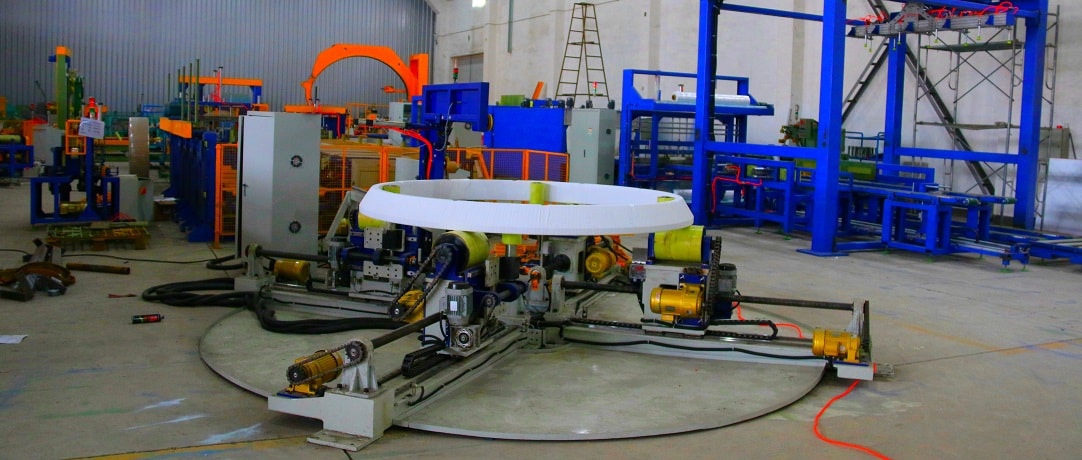

Big size bearing packing machine

Big size bearing packing machine


FHOPE provides a packaging solution for large bearings using a machine that is able to wrap and handle the bearings with high efficiency and safety.
The machine is designed to be adjustable to accommodate different bearing sizes, and it is also able to apply three layers of packaging material and oil to the bearings in one pass.
This can be a useful solution for industries such as wind power and heavy machinery manufacturing, where large bearings are often used.
It can help to ensure that the bearings are properly protected during shipping and handling, and it can also help to improve efficiency by automating the packaging process.

Automatic packing material feeder on packaging solution is equipped with a cutter that can clamp and cut the material, which can help to improve the efficiency and accuracy of the wrapping process. This feature can be especially useful in situations where large quantities of bearings need to be packaged quickly and consistently.
It can help to eliminate the need for manual tying and cutting of the packaging material, which can save time and reduce the risk of errors.
Overall, an automatic packing material feeder can be a valuable addition to a packaging solution for large bearings, helping to streamline the process and ensure that the bearings are properly protected during shipping and handling.


Object weight: 500-12000kg
Package width: 150-600mm
Package OD: 2900-5000mm
Package ID: 2500-4200mm
OD-ID<950mm
Operator: one people
Wrapping speed: app. 60-110sec/coil (with three layers one time packing option)
Roller Speed:2-4m/min
Rotating speed: 20-60r/min
Overlap scope:10%-90%
Power output: app. 4.5kw
Power voltage:200v/60Hz 3phase
Packing material: VCI FILM
ID:50mm  OD:100-300mm  Width:200mm
               STRETCH FILM
ID:50mm  OD:100-300mm  Width:300mm
