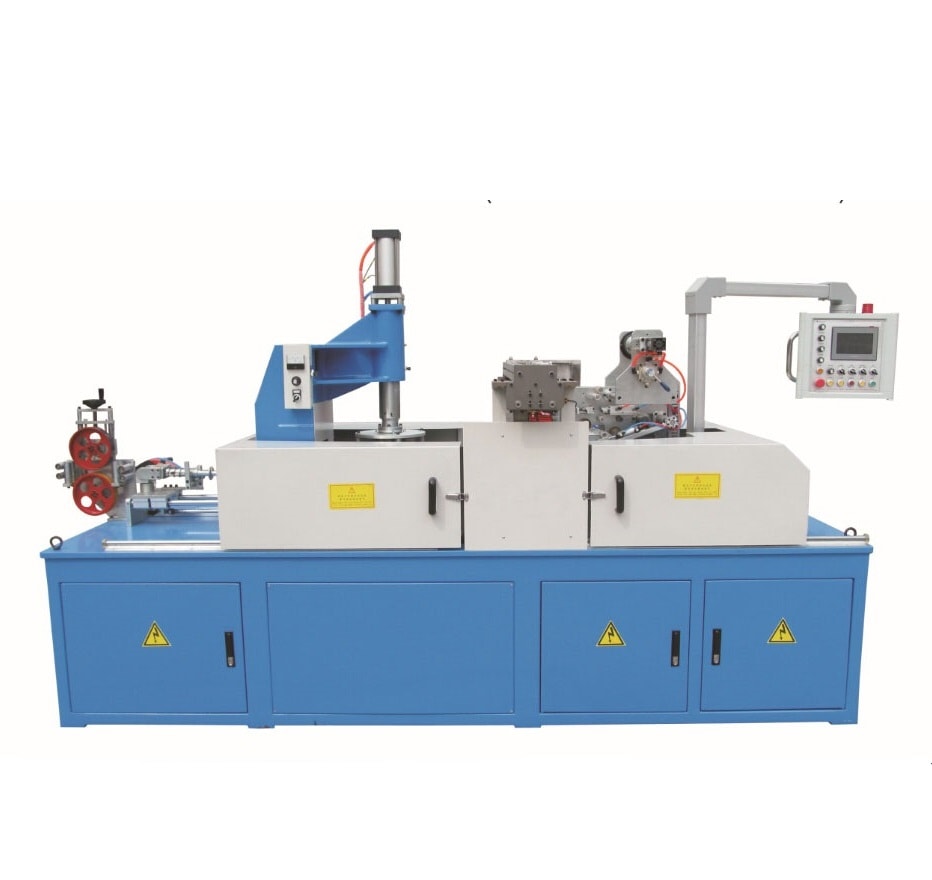

Automatic cable winding machine

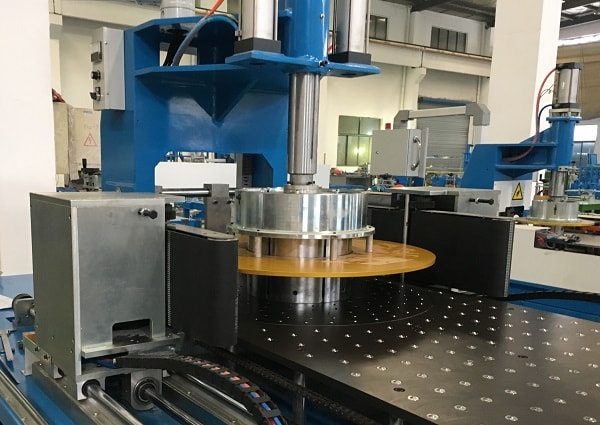

Automatic cable coiling and wrapping machine can automatically calculate the cable length and make and cut the coils. This can save time and improve the accuracy and consistency of the coiling process. Additionally, if desired, a wrapping or strapping machine can be added after the coiling machine to make the entire packing line fully automatic. The machine is available in two types: online and offline. If you connect the coiling machine to your cable production line, it can be used for online packing. These features can help improve the efficiency and reliability of your cable coiling and wrapping process.



Automatic cable coiling and wrapping machine has a user-friendly control program that can be accessed and adjusted through the touch screen in English. The coiling process is fully automatic, including cable feeding, coiling, dispensing, length checking, and cutting. If any errors occur, they will be displayed on the touch screen and the alarm light will activate. The machine also uses a sensor and servo system to automatically detect the cable position, and the coiling tension is controlled by a magnet power tensioner. These features can help ensure the accuracy and reliability of the coiling process.

Coil size  ID: 140-200mm OD: 240-460mm Height : 60-100mm
Weight: 50kg（max）
Single cable diameter3-15mm
Coiling speed 2-2.5 coil/min
Air supply 6bar
Coil feed style mode Hold coil type
Meter counter 0.01m-100m
Power voltage AC 380V, 50HZ, 3 phase



If you have any specific requirements or customization needs for the automatic cable coiling and wrapping machine, you can contact your team for more information.
They will be able to assist you in finding the best solution for your needs and provide additional information and support.
