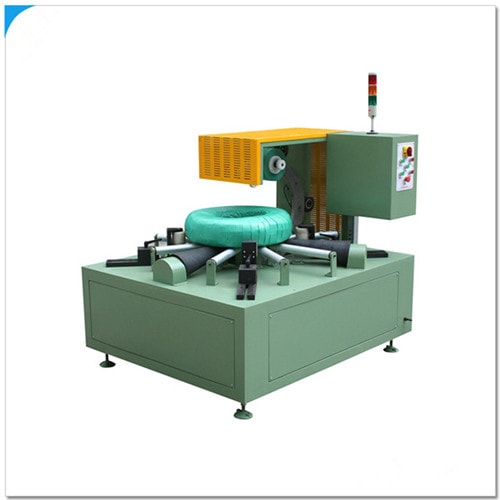

Cable Coil Wrapping Machine FPCA-200

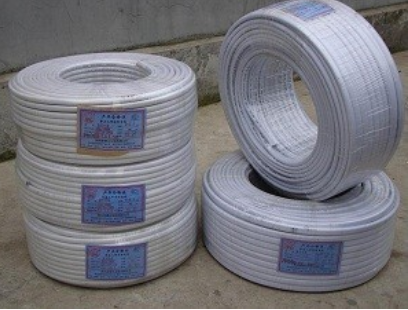

A multifunctional cable coil wrapping machine is a machine used to wrap cable coils in stretch film or PVC film in order to protect them from dust and moisture. The machine works in conjunction with a coiling machine at the end of a cable extruder to increase packing speed. The cable coil is placed on a roller station with the eye facing upwards to allow for smooth wrapping of irregular cable coils.
The machine consists of three main parts: a ring and driving device, supportive rollers and a drive device, and an electric control system. The wrapping process creates a regular overlap for a neat and professional appearance, and the coils can be wrapped without the need for strapping.
The features for the multifunctional cable coil wrapping machine include:
PLC (programmable logic controller) and HMI (human-machine interface) for automatic material calculation and easy maintenance and change through panel operation.
The ability to store different specifications in the program.
A soft stop, start, and reset function for the ring.
The option to work in both manual and automatic modes for flexibility.
The use of converters to adjust the speed of the ring and rollers.
The ability to adjust the overlapping rate of the packing material to meet specific requirements.
Foot switch control for manual operation.
Motor overcurrent protection for safety.
Supportive rollers to prevent shaking during wrapping.
Automatic packing machinery cutting and feeding.
A derived supportive roller for turning.
The use of four groups of electric arms to adjust wire reel size and collating winding center point.
CE standard control panel for meeting safety standards.
Adjustable friction on the ring and wheels for long-term use.
It can be customized to meet specific specifications.
|
|
FPCA-200 |
|
Voltage (V/Hz) |
AC 380/50( or your requirement) |
|
Power supply(KW) |
2.0 |
|
Cable coil ID(mm) |
150-400 |
|
Cable coil OD(mm) |
250-500 |
|
Cable coil width(mm) |
80-200 |
|
Cable coil Weight(Kg) |
2-50 |
|
Packing material |
PE/Stretch film/pvc |
|
Ring speed(r/min) |
10-120 |
|
Wrapping speed |
20-30sec/pcs |
|
Overlapping rate |
20-80% |
