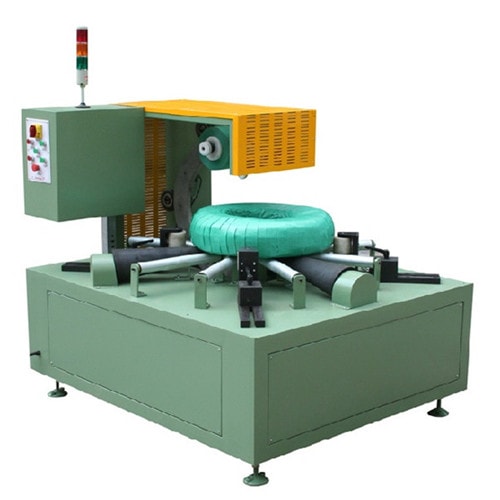

Cable coil wrapping machine FPCA-300
FPCA-300 is a multifunctional wire cable coil wrapping machine that is designed for wrapping larger cable coils. The machine is capable of two-layer wrapping using stretch film and paper or woven material, and the surface material can be film or paper/woven based on the packaging goals. The machine is also available in a compact space-saving version where the control board is installed inside the working table. The FPCA series of cable packaging machines is known for their high efficiency, beautiful packaging, and ability to save on labor and material costs. They can also be customized to meet specific mechanical specifications.
FPCA-300 wire cable coil wrapping machine is equipped with a PLC & HMI and inverters for control and speed adjustment. The machine uses manually loaded and unloaded coils on the working table, and the speed can be adjusted using the Hz setting on the inverter. The overlap of the wrapping can be changed by adjusting the speed of the rollers or rings. The machine also has a support roller that guides the cable coil to rotate in the center of the wrapping position. It is compatible with a wide range of packing materials and is easy to reload. The machine is designed to be easy to continue wrapping even when the packing material runs out. It also has sensors to check the ring position and wrapping steps. These features can help ensure the efficiency and reliability of the wrapping process.
|
FPCA-300 |
|
Power Supply (V/Hz) |
AC 380/60Hz( or your requirement) |
|
Power (KW) |
2.4 |
|
Cable coil ID (mm) |
250-510 |
|
Cable coil OD (mm) |
400-900 |
|
Cable coil width (mm) |
60-300 |
|
Cable coil Weight (Kg) |
20-200 |
|
Packaging material |
LLDPE/PVC/PE FILM/Paper |
|
Ring speed(r/min) |
10-90 |
|
Wrapping speed |
20-38sec/pcs |
|
Overlapping persent |
10-90% |
|
