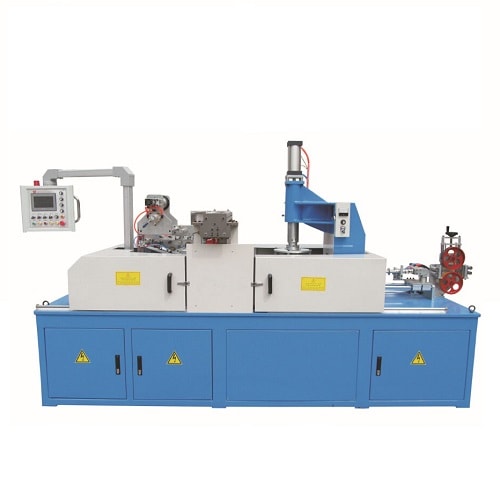

Automatic coiler FCL-H300

1) Application:
The automatic cable packaging line is for offline cable packaging. It is able counting the lengths of cable, automatic cutting, coil making, strapping with PP & automatic shrinks or wrapping by film. All conform to CE guidelines and have been designed using the latest technology and design criteria for industrial use.
Automatic coiler FCL-H300
2) Basic characteristics:
Automatic cable coiling machine
1) Function:
The equipment is for automatic calculating the cable length, coil making and cutting. And then hold the cable coil to move it to the next procession station automatically.  The figure can be set in the PLC control program.
1) Features:
PLC & HMI control program are used for automatic operation.
Parameters can be set on the control program with English.
Coiling OD adjustable.
cable cutting length can be adjusted as setting.
Two protective guards to fix and move the coiled cable.
Automatic error detection function, it will alarm when trouble occurs.
Detecting the cable position automatic by sensor.
Pressing device making the cable coil fixed and stable.
Tension control are included in the packing line
Automatic unwinding machine for control the unwinding tension and keep the cable feeding synchronize coiling.
Providing spark tester connect port.

3) Technical parameter:
Cable coil size Inner diameter of coil: ID Ø 110 mm and Ø170mm
Outer diameter of coil: OD Ø 140-400 mm
Coil height: 40-200 mm
Cable size 5-15mm
Air supply 6bar
Coil feed style mode Hold coil type
Meter counter 0.01m-100m
Power voltage AC 380V, 50HZ, 3 phase (changeable)
