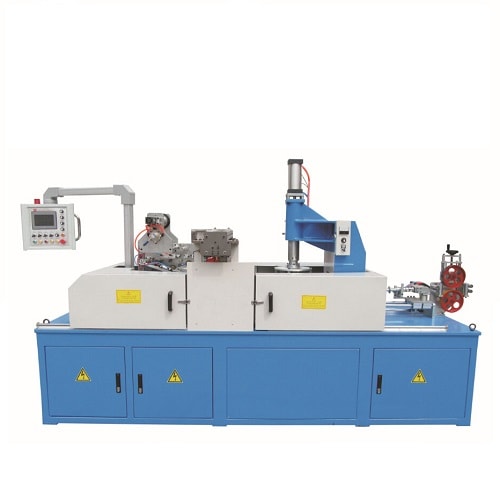

Automatic winding machine FCL-H600

Automatic wrapping machine
1. specification and performances:
power :AC380V,3-phase,50HZ, or provided by customer
operation direction: inlet wire from left, or provided by customer
wire reel weight:max.40kg
PVC/PE/PP film size:thickness:0.04-0.07mm, width:40-50mm
way of loading plastic film:pneumatic loading
electric loop control :adopt Mitsubishi micro-computer programme controller(PLC)
operation panel:Graphic operator Interface
meter and switch on operation panel:touch screen, speed button, emergent switch
Automatic winding machine FCL-H600
fast wrap by adopting PVC/PE film,PP braiding band or braiding paper
touch screen(PLC) control, convenient to operate
adopt machine arm to clamp wire, AC motor drives, gyrate smoothly
electric adjust machine arm size
PLC micro-computer automatic control system, can store 99 kinds of different wire reel specifications, only need to read storage data when changing wire reel specification
Main parts:
PLC: Mitsubishi
Server Motor: Mitsubishi
Switch: Schneider
Cylinder: Airtec
Relay: Omron
