Coil Upender Tilter

Coil Upender Tilter

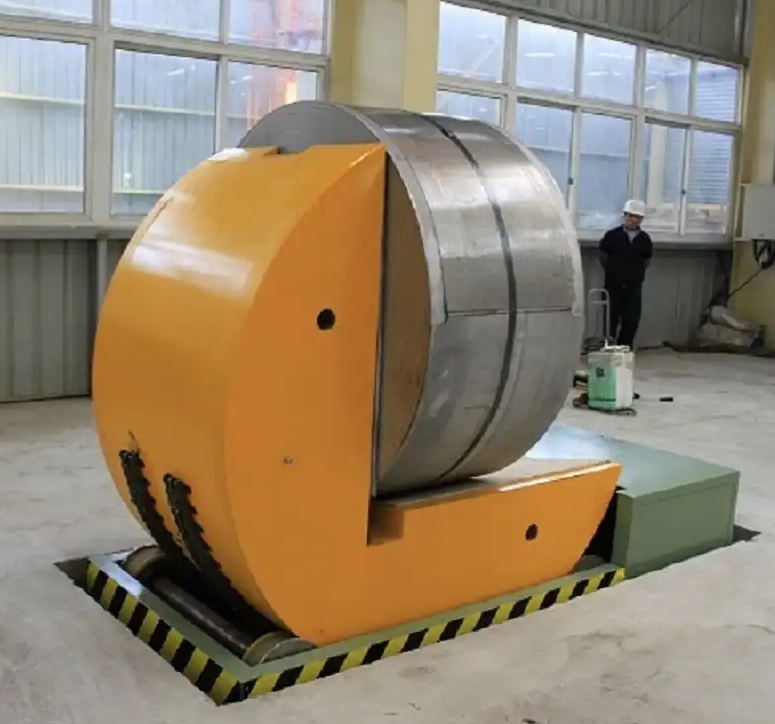

A Coil Upender from FHOPE PACK, also known as a Coil Tilter, is a machine used to rotate heavy coils of steel, aluminum, or other materials in the metallurgical industry. The machine is designed to perform this task in a safe and efficient manner, using a driving system and a gear motor to provide power and control. The machine is typically used in the module end of the metallurgical process, and is used to replace manual handling and position turning of coils. The machine can be customized to the specific requirements of the customer, and safety features are incorporated to keep the operator away from the coil turning position. The turning body is reinforced with a mechanical structure and band, with special treatment to ensure smooth and safe operation.

Basic feature:

  1. Special structural design and reliable helical gears, high-quality worm reducer ensure stability and durability of the machine
  2. Four-roll device provide heavy-duty support for tilting
  3. The inverter controls the speed of tilting
  4. Two displacement limiters and limited sensors for safety operation
  5. Machine can be stopped at any angle even if power is turned off
  6. Emergency stop and position lock function to avoid accidental rotation.
  7. Customized workbench can be designed to suit specific products
  8. Upgraded gearbox provide low noise and low wear operation
  1. The machine can be controlled by a control box or manually using a remote control
  2. Inverters are used to adjust the speed of the tilting operation
  3. A remote controller is provided to give the operator the ability to control the machine from a safe distance

  FPCT-03 FPCT-05 FPCT-10 FPCT-20
Power Supply (V/Hz) AC 380/50( or your requirement)
Power consumption (KW) 1.3 2.0 4.5 7.8
Max. Loading 3T 5T 10T 20T
Speed (sec/set) 20-40 20-40 20-40 20-50


Fhopepack is a supplier of heavy-duty conveyors and coil upenders, offering high-performance and price-competitive solutions for the steel industry. The company offers digital speed control and custom designs for their machines, and provide customers with two types of warranty and all machine documentation files. Fhopepack's tilting machines are the result of over 15 years of experience in design, manufacturing, and application and the company take pride in their products that are made in China.
The company also offers resources to help its customers maximize worker safety by implementing daily audits and scheduling for improvement. One way to improve safety is to use lifting equipment, which is considered among the best ergonomic best practices, since upending equipment reduces the need for manual lifting and turning of heavy products.
The coil upenders provided by Fhopepack make it easy to handle large or delicate products while securing workers and preventing workstation accidents. The company has rich experience in providing coil upenders that help companies in the steel industry to improve worker safety by providing the proper solution for safe handling and protection devices.
