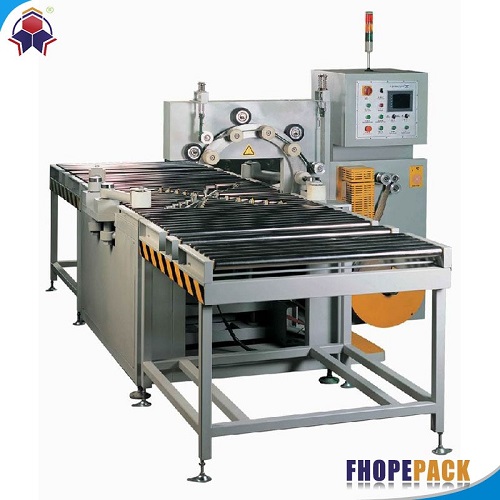

Horizontal steel coil packing machine FPCA-1000

• -Both Manual and Auto working modes can be choose for flexible operation.
  -PLC and touch screen are good partner for packing’s automatic running.
  -It’s simple to input coil’s OD/ID/width on the touch screen.
  -Taper roller will help the coil rotation during wrapping process.
  -Manual positioning for cost-effective budget.
  -Automatic supportive rollers. Wrap tension adjustable as need.
  -Frequency converter is great for machine’s speed adjustment.
  -When it has various packing specification, it just inputs or adjusts some data on touch screen.
  -Guardrails is necessary for safety.
  -Guard roll is special design for coil’s convey leading ready for wrapping in place.
  -Roller is made of stainless steel to keep steady and solid.
  -The height of working table and conveyor is human engineering.
  -For packing foil, the machine has nice management system of cutting off automatically.
  -Also, manipulator for packing material’s feeding, clamping cutting optional.
  -Friction of the ring is adjusted well when it’s delivery and it can adjust in site based on operator’s packing goal.
  -Three-color safety light is topped on the electrical cabinet.
  -The machine has good running habit of soft start and soft stop.
  -Conveyor length can be made according to need.
  -Height of conveyor table adjustable 880-890mm Work table total width 1200mm (net 1100mm inside between 2 channel width 50mm)control panel should be touched and controlled the operator side over the machine.
•
