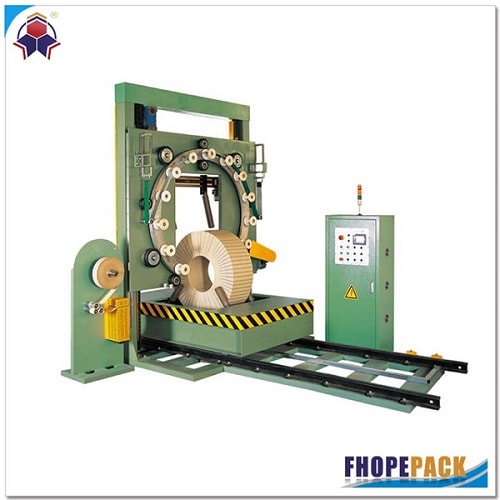

Steel coil wrapping machine FPS-600
Basic features
1) Excellent collections. international main components for easy get on local market.
2) PLC with HMI and inverters
3) Loading Trolley with truck that is the way for the coil hadnling safe and movement reliable.
4) The ring board center adjustmable for packing the different coil OD by motor driving.
5) Two layer packing material wrapping at one time.
6) Wrapping film tension is adjusted by special tension control system to achieve the good wrapping effect for all the size of coils.
7) Protective guard of ring part for safe operation.
8) The overlapping can be adjusted by converter according to needs.
9) Ring soft turning and high speed turning in different wrapping procession.
10) One bottom Packing position reset .
11) Motor Overloading protection.
12) Safety limitations in ring ratating and coil rolling .
13) Guardrail for the running part ensures safe operation.
14) Ring speed and roller speed are adjustable by converter.
15) Independent electrical control cabinet for easy operation and maintenance.
16) Friction of wheel postiion adjustable for ring smooth rotation and long life of the wheel.
17) Soft PU wheels for ring surface protection.
18) Packaging time is available for setting on control panel for automatic stop.
19) Machine reinforce machine structure with long using life.
20) Indicator automatic alarm.
Option parts:
a. Special film tension control system
Providing consistent packing tension for small and big wire coil for tighten packaging.
b. Automatic material cutter
Automatic material feeding and cutting to avoid manually job in material tie on coil and cutting.
It is a special cutter which working for cutting the stretch film&paper together.
c. Interlock
Fortress interlock for rotate part
d. HMI
It is for panel control the machine which is necessary part for automatic cutting.
Technical data:
Coil width: 100-600mm
Coil ID: 508-610mm
Coil OD: 700-1600mm
Coil weight: 100-3000kg
Roller speed: Approx 3-5m/min
Rotating speed: approx. 20-70r/min
Overlap rate: 20%-90%
Power output: Approx. 6.5kw
Power supply: 380 V, 50 Hz, 3 phase
Packing material:
crepe paper/plastic knit tape/PE film: ID: 55/76mm; OD:200-400mm; Width: 100-120mm
LLDPE stretch film coil: ID: 50/76mm; OD: 100-180mm; Width: 100-120mm
