AUTOMATION THE HOSE COILING AND PACKING

Automatic winder FCL-V1200

Automatic winder FCL-V1200

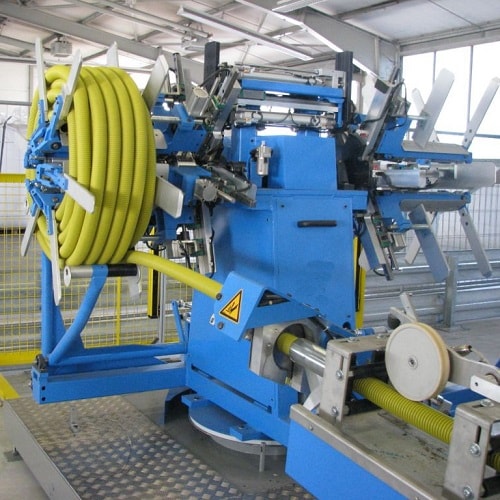

Automatic winder and strapping machine
Coiler features:
  PLC and HMI control system for automatic operation.
  Two working modes: automatic and manual.
  Tension control for pipe feed for tight winding.
  The parameters can be set in the PLC program.
  Calculate the length of the pipe and automatically cut the pipe.
  Automatic winding system.
  Automatic alarm system when a fault occurs.
  The position of the pipe is automatically detected by the sensor.
  The speed can be adjusted by the frequency converter.
  The two wheels are wound continuously.
  Adopt automatic displacer.
  Winding the pipe coil in an orderly manner.
  Pneumatic discharge tube coil.

Strapping machine features:
  Automatically bundle hose coils.
  Automatic alarm system when a fault occurs.
  Good tension control to protect the pipe surface.
  The strapping position is automatically detected by the sensor.
  The speed can be adjusted by the frequency converter.
  The automatic strapping coil is in the 3/4 position.
  Operator operation is simple and safe.
  The success rate is as high as 95%.

FCL100 FCL1200
Pipe outer diameter 20-60mm
Coil head 1or 2
Coil inner diameter 400-1000mm
Coil outer diameter (maximum) 1200mm
Coil width (maximum) 350mm
