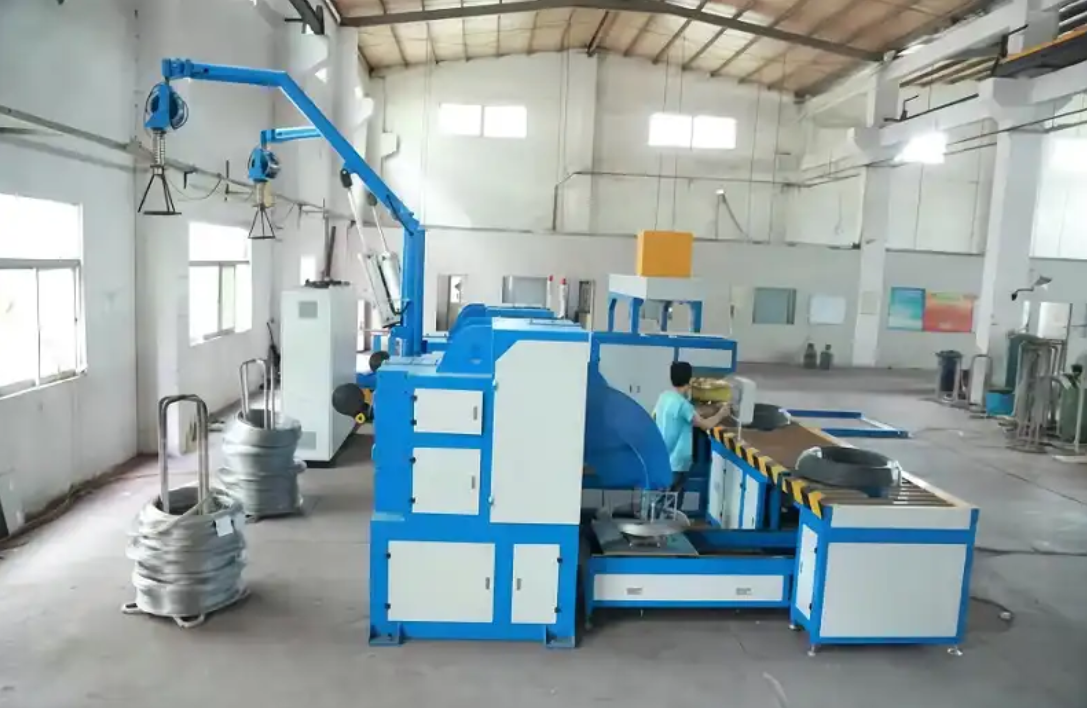

Automatic steel wire winding and binding machine
Automatic steel wire binding machine is to wind and bind steel wire coils.
The use of an elephant trunk type winding machine appears to be a unique feature that helps to address the technical problem of small finished coil weight and excessive joints in previous designs. The machine includes a frame structure and a reel for winding the steel wire, with the reel arranged eye to sky. One end of the reel is equipped with a winding plate that is connected to a power mechanism that drives it to rotate, while the other end has an elephant-trunk connecting plate. This design allows the machine to wind and bind steel wire coils efficiently and effectively. It is important to follow proper safety protocols and maintenance procedures when using this type of machinery to ensure safe and reliable operation.
It helps to increase the weight of finished wire coils and reduce wire joints.
There are several advantages to this design:
The reasonable design and simple structure of the machine can help to ensure efficient and reliable operation. The use of the elephant trunk connecting plate is an innovative feature that helps to improve the performance of the machine.
The high working stability and smooth operation of the machine can contribute to improved production efficiency. This can help businesses to produce wire coils more efficiently, which can ultimately lead to cost savings and increased productivity.
It is important to follow proper safety protocols and maintenance procedures when using this type of machinery to ensure safe and reliable operation.
Basic parameter
1. diameter of winding reel: φ560mm
2. winding speed: 360m/min
3. wire diameter: φ2-φ4mm
4. weight of wire coil: 50-1000kg
5. motor: 10kg/m torque motor
The binding machine is responsible for rewinding the wire coil and shifting it to the binding position, where it will be bound using wire. The binding machine includes two main devices: a wire feeding device and a wire twisting device. There are two solutions for binding the wire coil: one option is to use two twisting devices to bind one coil in two places, while the other option is to use a single twisting device and a rotating table to bind one coil in two places.
One advantage of this binding machine is that it uses steel wire as the binding material, which can help to save on binding material costs. Additionally, the ability to bind wire coils in multiple places using either one or two twisting devices can help to ensure that the wire coils are securely bound and able to withstand the rigors of storage and transportation. It is important to follow proper safety protocols and maintenance procedures when using this type of machinery to ensure safe and reliable operation.
It is used to lift and move bound wire coils to a storage area. The device includes two axial movements: crane forward and backward, and crane lifting and down. These movements allow the device to pick up and move the bound wire coils efficiently and effectively.
Using a device like this can help to improve the efficiency and safety of handling bound wire coils in a storage or manufacturing facility. Proper training and safety procedures should always be followed when operating any type of lifting or moving equipment to ensure the safety of the operator and those working in the vicinity.
